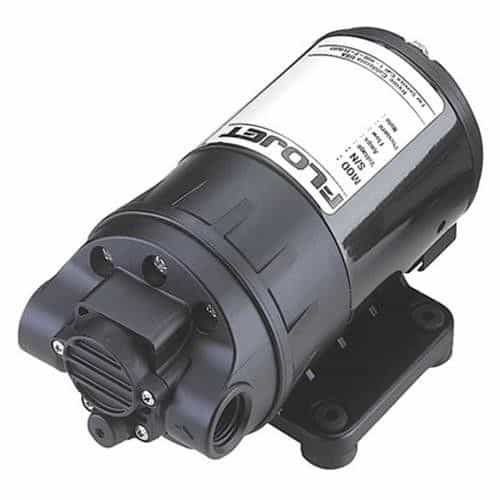

12VDC Flojet Duplex II Pump

This Flojet has a new diaphragm and valve design to make the pump capable of pulling higher dry vacuum. This pump is self-priming up to 8 feet (2.4 m), and can run dry without damage. The vertical prime may vary depending on the fluid viscosity, suction tube size, foot valve and pump configuration. The pump should be mounted in a dry and adequately ventilated area. If mounting the pump in an outdoor environment the pump should be shielded from water, dust, sunlight and wash down spray. This pump is equipped with a pressure switch and is an intermittent demand duty pump. The pressure switch will shut off the pump automatically when the discharge valve is closed and the pressure has risen to the switch OFF set point of 100 PSI.
Specifications and Features:

• Inlet: 3/8 inch
• Outlet: 3/8 inch
• 12 VDC
• Max temp: 140 degrees F
• 100 PSI pressure switch
• Sealed pressure switch automatically starts and stops the pump when the discharge valve opens and closes.
• Self-priming up to 2m
• Built-in thermal protection, max temp 140 degrees F
• Low Amp draw for battery powered applications
• Internal bypass
• Built-in backflow preventer
• Heavy duty ball bearing drive system

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
