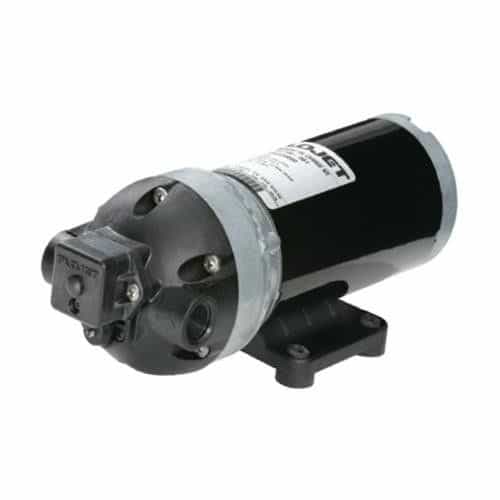

1.4 GPM Electric Pump

Flojet's 03811133A pump features a unique three-chamber design that delivers an flow rate of 1.4 GPM. Handles pressures up to a maximum of 150 PSI. Well-suited for spraying, misting, filtration, cooling, dispensing, and pressure boosting. NPTF Threaded inlet and outlet ports with a diameter that measures 3/8 inches.

Specifications:

• Open Flow: GPM 1.4
• Switch Pressure: PSI 150
• Check Valve: Viton¨
• Diaphragm: Santoprene¨
• Voltage: 12 VDC
• Duty Cycle: Intermittent
• Port Size: 3/8" NPTF
• Motor Design Perm. Magnet TENV (non-ventilated)
• Pump Head Material: Glass Filled Nylon
• Weight: 7.6lbs (3.5kg)
• Certifications: CE, NSF components

Features:

• Flow rates up to 1.4 GPM
• (5.3 LPM) and operating pressure of up to 150 psi (10.3 bar)
• Constructed from a selection of materials suitable for handling a broad range of chemicals
• Innovative bypass design
• Self-priming up to 8ft (2.4m)
• Sealed motor
• Can run dry for extended periods of time without damage
• Coinjected molded diaphragm technology
• Consistent pressure over time

Applications:

• General Industrial

  • Chemical washdown
  • Evaporative Cooling Systems
• Agricultural

  • Misting
  • Spot Sprayers
  • Boom Sprayers (to reach treetops)
• Floor Care

  • Carpet Extractors
  • Carpet Cleaning
• Automotive

  • Boost Cooling
