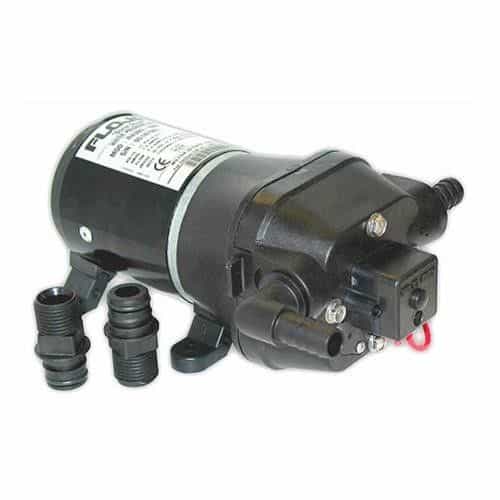

Flojet 04300531A Self-Priming Quad Diaphragm Pump - 35 PSI, 3.5 GPM, 115 VAC
Brand:
Mfr. Model #:
04300531A
KR Part #:
FP04300531
Weight:
13.00 lbs
Availability:
6
(0)This is a four-diaphragm pump with a self-priming ability. Used for water-like and viscous liquid applications. Handles a maximum flow rate 3.5 GPM and a maximum pressure of 35 PSI.
Prop 65
Technical Specifications
Voltage AC: 115
Max GPM: 3.5
Max PSI: 35
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch
Product Description
Pump and Electric Motor
Flojet's 04300531A is a quadruple diaphragm pump with a four-piston design that delivers a high flow rate reaching a maximum of 3.5 GPM. Pump self-primes up to 2.4m vertical lift. Pump body is manufactured using polypropylene for its chemical and corrosion resistant properties. Equipped with a 1/2-inch hose barb inlet and a 1/2-inch male Quest outlet. Compatible with 115 VAC electrical connections.
Specifications:
- Voltage: 115 VAC
- Inlet: 1/2" Hose Barb
- Outlet: 1/2" Male Quest
- Flow: 3.5 GPM
- Max PSI: 35 PSI
- Body: Polypropylene]
- Check Valve: EPDM
- Diaphragm: Santoprene
- Option: Pressure Switch
Features:
- Self-primes up to 2.4m vertical lift
- Handles Water-Like and Viscous Liquids up to 250 cP
- Four-piston design delivers higher flow rates
- Chemical-resistant polypropylene pump head for Iong life
- Choice of elastomeric materials to work with many chemicals
- Quick-connect plug-in ports for easy installation
- Optional pressure-switch control to run the pump only as needed
