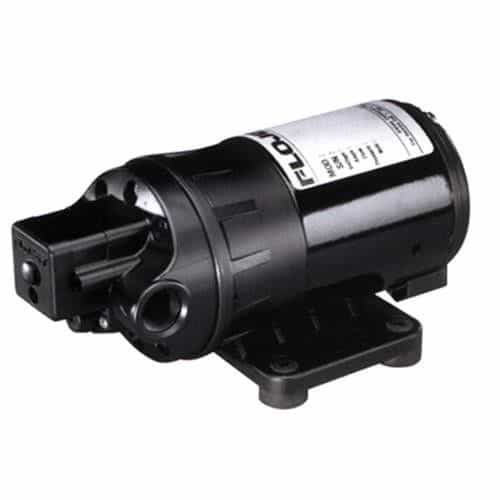

Flojet 02130132A Duplex Diaphragm Demand Pump - 3/8 Inch Ports, 95 PSI, 1.7 GPM
Brand:
Mfr. Model #:
02130132A
KR Part #:
FP02130132
Weight:
4.61 lbs
(0)This is a duplex diaphragm pump that can run dry. Duplex design eliminates shaft seal. Tolerates temperatures up to 160° F.
Prop 65
Technical Specifications
Max GPM: 1.7
Max PSI: 50
Voltage DC: 12
Max Temperature: 160 degrees F
Product Description
Electric Pump
This self-priming double diaphragm pump that is powered by an electric motor. A built-in pressure switch starts and stops the pump when the discharge valve is opened and closed. Design allows for extended dry running without damage to the pump. Features a self-priming ability up to 8 feet of vertical lift.
Specifications:
- Flow Rate: 1.7 GPM
- Pump Design: Duplex Diaphragm
- Shaft Seal: None
- Motor: Permanent Magnet Motor
- Standard: TENV (non-ventilated)
- Optional: TEFC (fan-cooled)
- Standard: TENV (non-ventilated)
- Voltage: 12 Volt DC
- Current: 8.0-amp max.
- Pressure Switch Setting: 40 - 60 PSI
- Maximum Operating Pressure: 95 PSI
- Maximum Fluid Temperature 160°F
- Self-Priming: Up to 8 ft.
- Ports: 3/8 NPT, may be rotated in 90° increments
WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
